FAQ
It will stop working. The machine will be initialized when powered on.
The imported image should be clear. Make sure that focusing correctly before engraving and the power and speed are appropriate.
Check that the screws are tight and the belt is not too loose or too tight.
The tightness of the belt is appropriate if the laser module can slide slowly on the X-axis profile perpendicular to the desktop by gravity, and any pulley in the laser module has no empty sliding.
Ensure that the material to be engraved is flat. Observe the gradienter on the machine to ensure that the machine is horizontal, and has been properly adjusted according to the operation method of the user manual.
The laser may penetrate the material and damage the workbench (especially when cutting). It is recommended to place objects on the bottom that cannot be penetrated by the laser, such as stainless steel plates, aluminum alloy plates, etc.
Please check if the TF card is inserted. The machine reads the latest engravingfile(.gcode/.gc/.g/.nc/.ngc) in the root directory of the TF card by default. It is recommended to delete other engraving files in the root directory.
In preview mode and engraving mode, if the machine turns on it side or moves, it will turn off the laser. Motor stops moving, indicator light flashing, and buzzer emits alarm.
Solution: Please move the machine to its original position and press microswitch on the control box to continue previewing or engraving after clearing abnormality (The microswitch only works during offline working).
1. Check that the power plug is plugged in properly.
2. Check that the power outlet is properly powered.
3. Check that the red power switch on the machine is turned on.

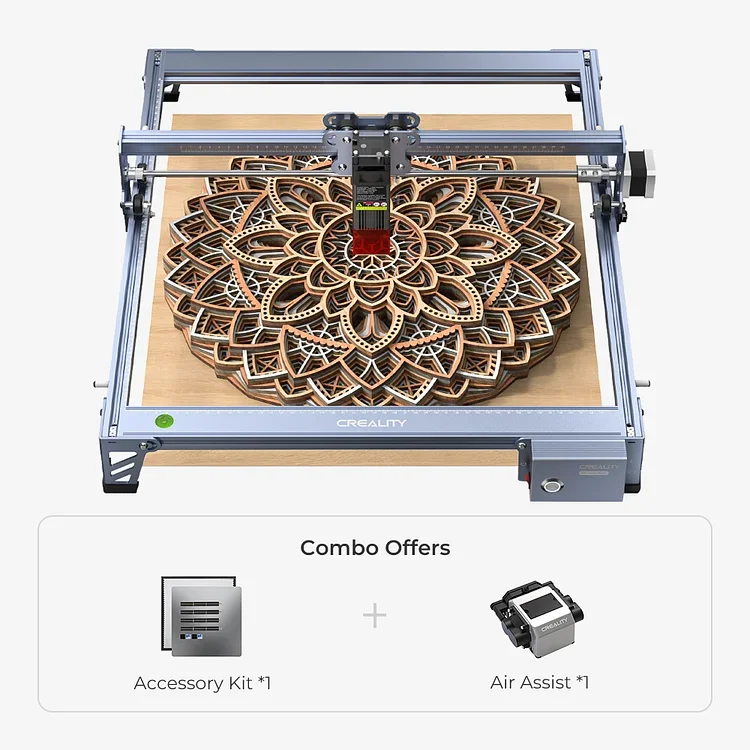

CR-Laser Falcon adopts the design of shading and eye protection, and integrates the MEMS attitude sensor. The laser module will stop working when the machine turns on it side abnormally. Even so, we still recommend that you wear goggles during working.
It is due to the limited switch cannot be closed normally. Ensure that：
1. X direction：When the laser module moves to the end of the left side, the limited switch of X-axis can be closed normally；
2.Y direction：When the laser module moves to the end of the control box, the limited switch of Y-axis can be closed normally；
If the limited switches cannot be closed, check whether the wire is obstructing the movement of the laser module and the X-axis assembly first. Then reinstall the X-axis assembly to make it parallel to the front and rear X-axis profiles.
Engraving: Paper, Wood, Bamboo, Leather, Textile, Acrylic, Painted Metal, Plastic, etc. Cutting: Paper, Wood, Bamboo, Cloth, Leather, Fabric, Acrylic, Plastic, etc.
Yes, but the radian of the material should not be too large. Otherwise there will be slight deformation
Yes, but you need to apply anti-reflective material on the surface of the material before engraving to ensure the engraving effect and preventing the reflected light from damaging the laser module.
Materials with different colors have different optical properties. They have a difference in absorbing and reflecting the energy of laser. You can achieve a desired effect by adjusting the parameters.
Reduce the power appropriately or buy the air assist from Creality.
1.Ensure that the machine and engraving material are parallel to the workbench;
2.Ensure that the protective lens of the laser module is clean;
3. Refer to the user manual and focus correctly;
4. Refer to the recommended parameters in TF card；
5. Gradually increase the number of passes or reduce the cutting speed appropriately
LaserGRBL（Free）
LightBurn（Paid - 30 Days Free Trial）
LaserGRBL（https://lasergrbl.com/download/）
LightBurn（https://lightburnsoftware.com/pages/trial-version-try-before-you-buy） 3、What files can I import to the software？
LaserGRBL（bmp/png/jpg/gif/svg）
LightBurn（bmp/png/jpg/jpeg/gif/tif/tiff/tga/ai/pdf/sc/dxf/hpgl/plt/rd/svg）
The TF card comes with the machine. You can get more detailed tutorials from:
LaserGRBL（https://lasergrbl.com/usage/）
LightBurn（https://lightburnsoftware.github.io/NewDocs/）
Ensure that the Type-C data cable has the communication function. Restart the software and the machine, select the COM port corresponding to the engraving machine and try to reconnect.
