Highly Integrated
Klipper Open Source

Creality Sonic Pad Control Screen

A$238.50 A$238.50
Save A$0.00
Incl. GST & Tarrif. Invoice Available.
VAT Included. A 3D Printing Pad Based On Klipper, compatible with most FDM printers.
Highly Integrated with Strong Computing Power
Get It Going with No Hitch
Speed Up Printing While Keep the Quality
Intuitive Model Preview
Deft with User-defined Macros
Control Access from Multiple Platforms
Rich Extensible Interfaces
Open Source Commitment

Quantity

14-Day Return & Refund Service
100% Secure Checkout
Lifetime Customer Support
12-Month Hassle-Free Warranty
American Express Mastercard PayPal Visa

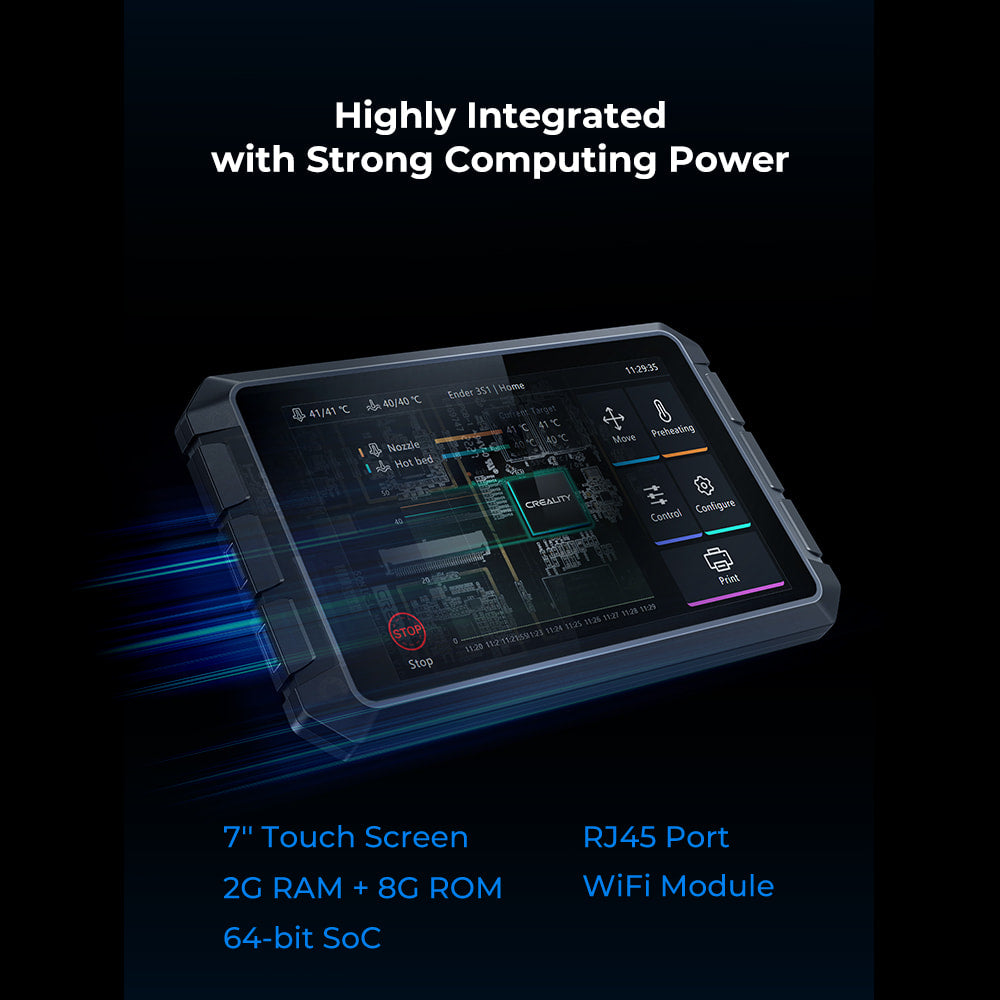

Highly Integrated with Strong Computing Power

With software-hardware integration, you will get stunning performance, but with less trouble.

Get It Going with No Hitch

Creality Sonic Pad can connect to almost any FDM 3D printer on the market via a USB cable.With the included configuration manual, it is easy to set things up.

There are 22 Creality popular printers that have been preconfigured to Sonic Pad. Upgrade experience without any delay.

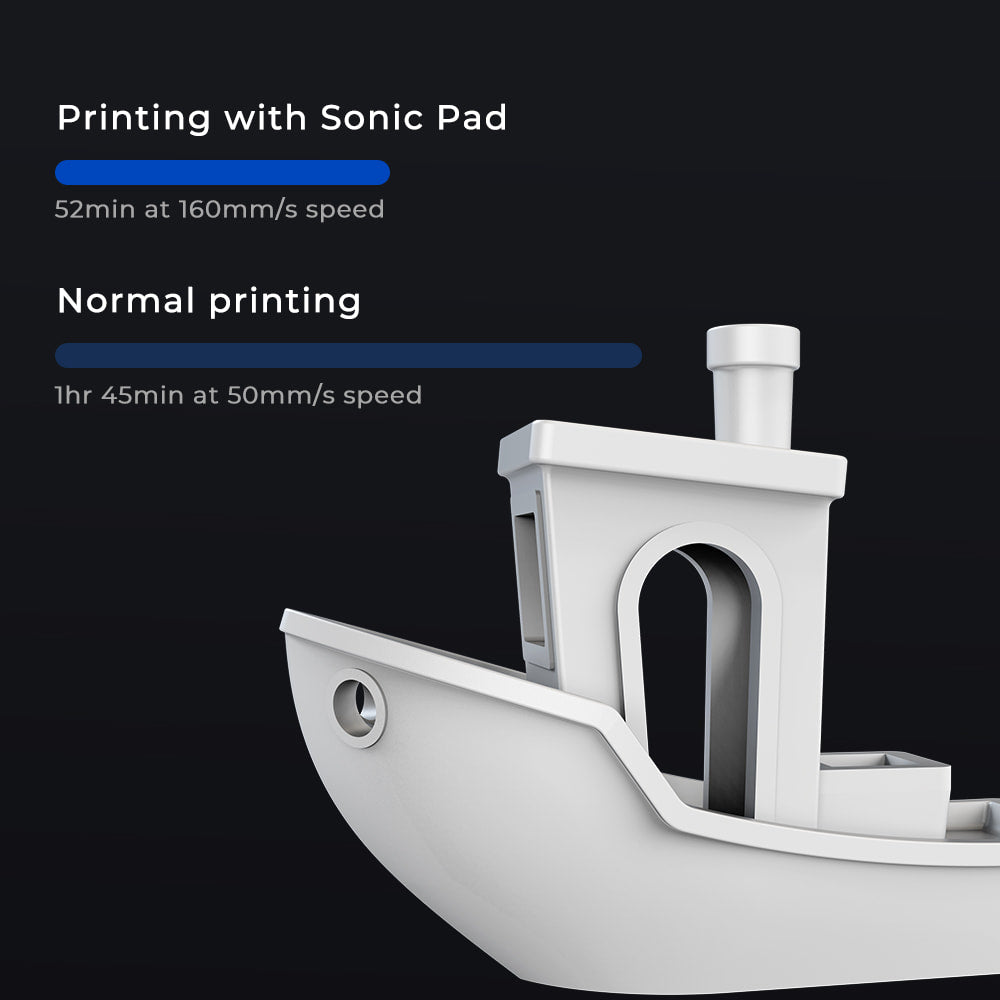

Speed Up Printing While Keep the Quality

The built-in input shaper function will mitigate oscillation during high-speed printing and smooth out ringing, thus keeping the model quality.

Multi-printer Control with One Sonic Pad

One Sonic Pad can control four printers at the same time, making it easy to control multiple printers with printer selection.
The first printer must be connected to the USBI interface (The default interface)

Intuitive Model Preview

Creality Sonic Pad supports G-Code model preview when slicing with the Creality Print, Ultimaker Cura, Prusa Slicer, and Super Slicer.

Deft with User-defined Macros

Creality Sonic Pad supports user-defined programmable macros, with each macro combining a series of commands to a specific function for higher efficiency.

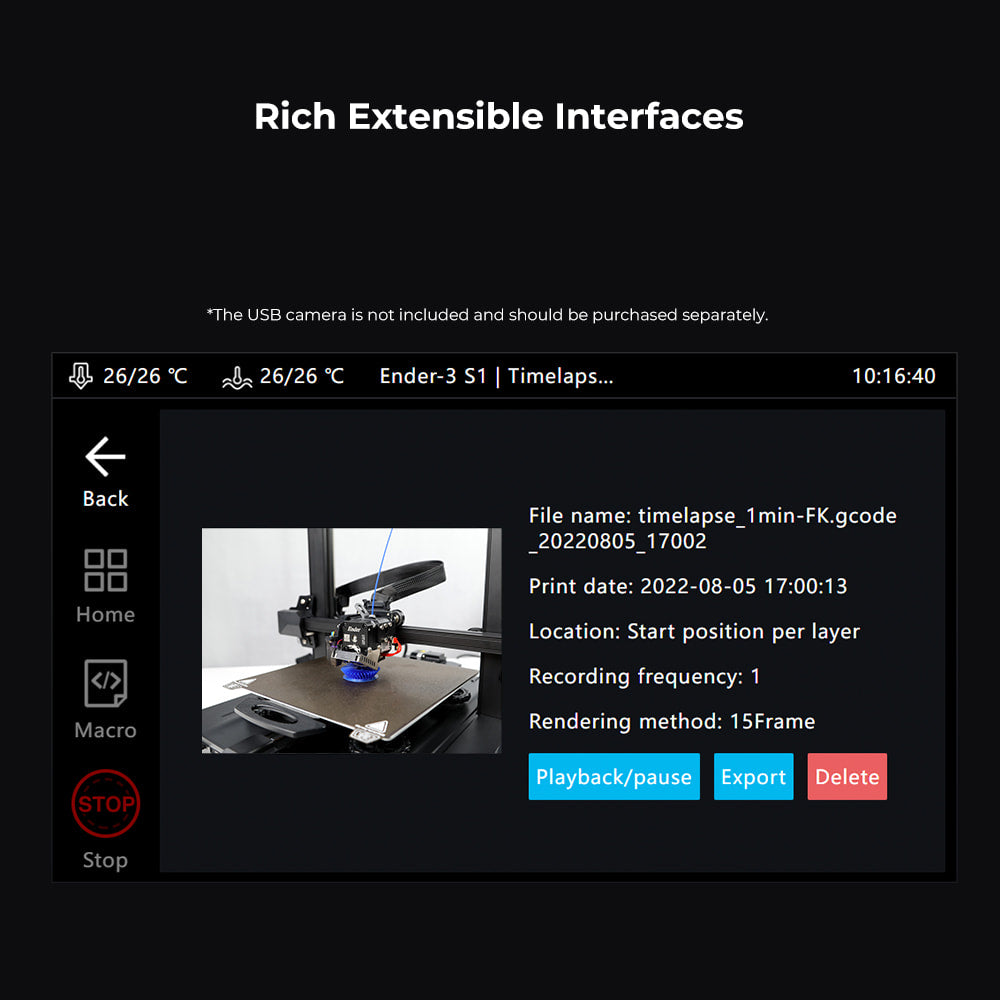

Rich Extensible Interfaces

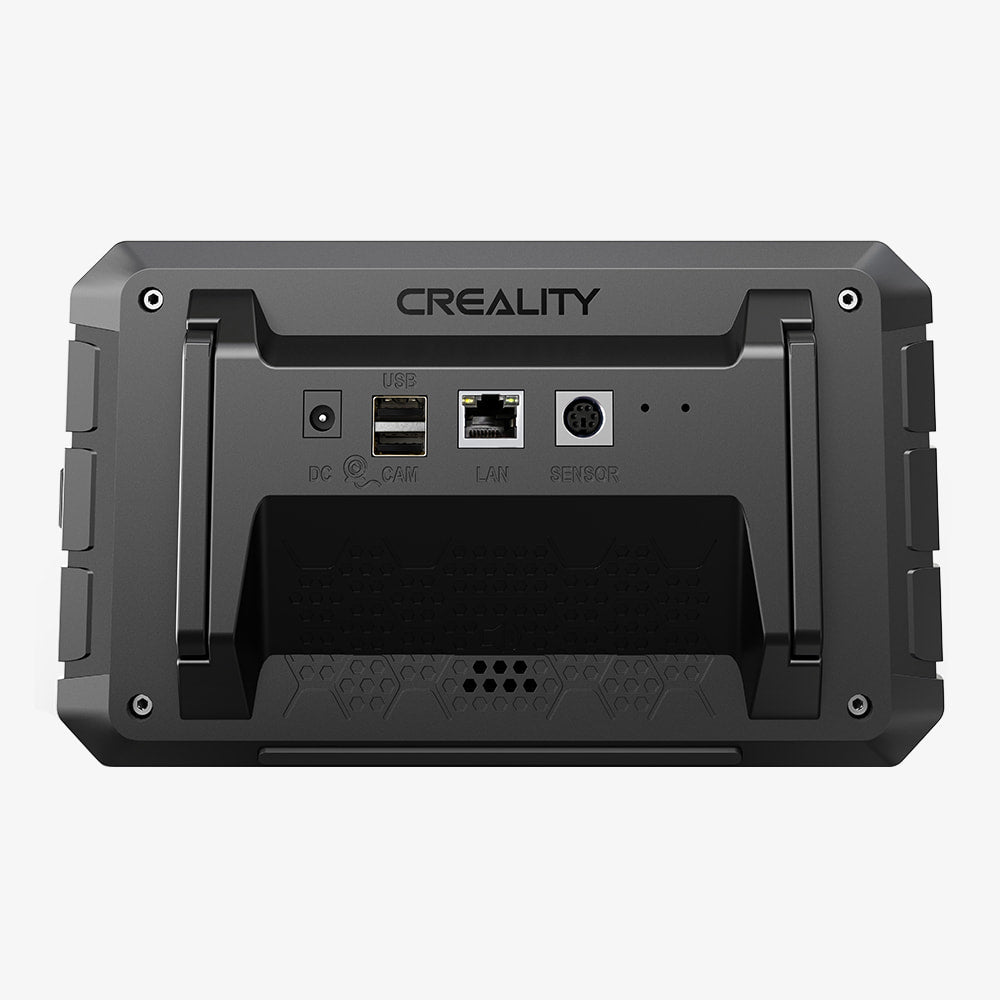

USB ports x4, RJ45 port x1 and WiFi module x1 are included. When a camera is added, it can realize real-time monitoring and time-lapse filming. More fun and possibilities are waiting for you.

Control Access from Multiple Platforms

Creality Sonic Pad can be operated either by the built-in touch screen or remotely from the web UI when connected to a LAN. Enjoy the freedom of control.

OTA & USB Upgrade

The Creality Sonic Pad OS can be upgraded online via OTA or offline via USB disk. Get the new functions at the earliest time.

Open Source Commitment

Creality Sonic Pad follows the rules of the Open Source community.
Users will be free to modify and customize the source code.

Creality Care+
Manual
Download
Open Source Plugins
Explore Now
CR Care+
Contact Us

FAQ

Reason 1. Failure to download the installation package due to a network anomaly.

Solution: Check whether the network is normal, you need to ensure that the network is normal to complete the download of the upgrade package.

Reason 2. Insufficient free space causes the installation package to fail to download or install.

Solution: If the network is normal but still prompts "download failed", please check whether the sonic pad has more than 500MB of space. If insufficient space, you should try to clean up part of the slice file or time-lapse photography video files to ensure that the available space is greater than 500MB and then try to upgrade; the network is normal and the available space is sufficient if the prompt "upgrade failed", you need to contact the after-sales service.

Creality Sonic Pad is compatible with FDM printer which comes with a USB interface.

With the included configuration manual, it is easy to set things up.
Besides, it has been pre-configured for Ender-3 V2, Ender-3 S1, and Ender-3 S1 Pro, so you can get it going in seconds.

Check whether the printer and the Sonic pad are connected properly, and check whether the Sonic pad and the printer power supply are connected properly.

Reason 1: Whether the camera is connected.

Solution: Enter the configuration - camera to check if there is a live screen, if there is no screen should be turned on first.

Reason 2: Whether the camera is compatible and recognized.

Solution: Confirm that the camera is universal and that the live screen is turned on.

Reason 3: Whether the storage is full.

Solution: Enter configuration - local information to check whether the local capacity is insufficient.

Reason 4: Whether the time-lapse photography settings are correct.

Solution: Check whether time-lapse photography has been turned on and whether the frequency of time-lapse photography is set correctly (the frequency should be less than the number of slicing layers).

The vibration sensor should be mounted on the hotend, you can use the model file printing bracket provided by Creality, and then fix it on the bracket using screws, no orientation is required.

The configuration file adds

[filament_switch_sensor filament_sensor]

pause_on_runout: true

switch_pin: ^!PC15

Note! switch_pin needs to be confirmed as the filament runout detector connection PIN"

Reason 1: The printer is not powered on;

Solution: Checking that the printer is powered on.

Reason 2:The printer was not successfully flashed with the correct firmware;

Solution: Checking that the printer firmware is the correct version.

Reason 3:Creality Sonic Pad configuration file error;

Solution: Checking that the configuration files are correctly matched.

Reason 4:The connection cable is not properly connected;

Solution: Checking that the USB connection is correct.

Reason 5:The software version is not correct.

Solution: Check that the current Creality Sonic Pad software version is the latest version.

Reason 1: USB drive bad;

Solution: Check whether the U drive is normal, insert the U drive into the computer, try to repair the U drive file system or format, or replace the U drive and try again.

Reason 2: Hardware issue;

Solution: Check whether the USB interface is normal, and try to change other USB interfaces.

Reason 3: Damaged card reader or damaged SD card.

Solution: If you use the card reader method, please try to replace the card reader (or memory card) to determine whether the function is normal.

Check whether the X,Y axis motor is normal and the belt is loose.

Confirm whether the slicing printing speed and acceleration exceed the normal range of the printer, and adjust the printing speed and acceleration appropriately (can refer to the slicing parameters provided by Creality)

Confirm whether the parameters related to the slicing file (whether the pullback is enabled, pullback distance, pullback speed, printing speed, etc.) match with the connected printer model, if not, you need to readjust the parameters and slice again.
