Creality Laser Engraver Series Buyer’s Guide



– Creality Laser Engraver Series Buyer’s Guide

Laser engraving technology has empowered countless families and businesses. Whether you’re a first-timer or an experienced maker, laser engraving technology can help you produce profitable crafts.

However, if you’re new to this technology, it can be difficult to determine what performance power you need and how much money you should spend from the wide range of laser engraving machines available on the market. To provide suitable production tools for different users and meet users’ creative needs, Creality has launched a series of laser engraving machines since 2021, ranging from laser module CV-Laser Module to Creality Laser Module Series, from whole machine CV-01 to CV-01 Pro, CR-Laser Falcon, Creality Falcon2, with different powers and models ranging from 1.6W to 40W.

This article will introduce the full range of laser engraving machines launched by Creality so that users can enjoy the fun of creation at the most suitable price according to their actual creative needs.

The Creality Laser Engravers

How to Pick your Creality Laser Engraver

①Top Pick:Creality Falcon2 22W





Small Size Pick

Budget Pick

Top Pick

Upgrade Pick



CV-01 Pro

CR-Laser Falcon

Creality Falcon2(22W)

Creality Falcon2(40W)

Market Price (USD, approx.)

Under200

Under500

$1,199

1,699

Work Area

170 x 200mm

400 x 415 mm

400 x 415 mm

400 x 415 mm

Cutting Depth

/

5W: 3mm Basswood (1 Pass)

10W: 5mm Basswood (1 Pass)

10mm Basswood (1 Pass)

20mm Basswood (1 Pass)

Laser Type

Diode Laser

Diode Laser

Diode Laser

Diode Laser

Laser Strength

1.6 W

5 W&10W

22 W&40W

40 W

Laser Focus

Automatic

Automatic

Automatic

Automatic

Recommended Software

CrealityLaser/

LaserGRBL/LightBurn

LaserGRBL/LightBurn

LaserGRBL/LightBurn

LaserGRBL/LightBurn

Offline Working

Yes

Yes

Yes

Yes

Dimensions

480*315*145mm

568*632*198mm

664*570*173mm

664*570*193mm

Weight

1.8 kg

3.2 kg

6.8 kg

7.4 kg

(Link:https://store.creality.com/products/falcon2-22w-laser-engraver-cutter?aid=ZBBlog)

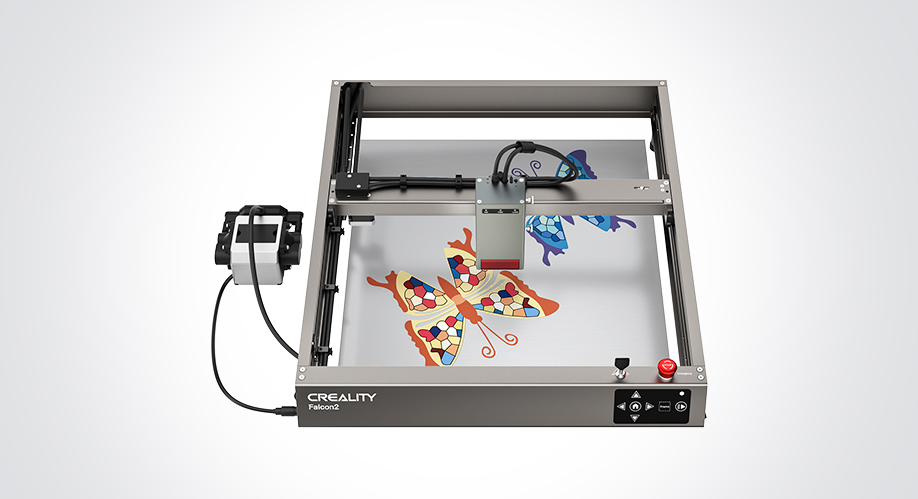

After the success of Creality’s flagship engraver, the manufacturer went back to the drawing board and launched a powerful sequel: the CR-Laser Falcon 2. It’s an optimal choice between advanced features and price. Provide greater power, larger build area, and new features. Small business owners and designers can utilize this engraver to produce customized gifts, while Makers and hobbyists well find this engraver useful for a wide range of DIY projects.

Off the bat, the biggest change implemented into the Creality CR-Laser Falcon 2 is the ultra-high power 22W engraving engine. Users can cut through a 10mm basswood in a single pass and use a variety of materials for engraving or cutting according to different needs, including various woods, stainless steel, acrylic, metal, plywood, kraft paper, and even soft materials such as paper and cloth. This means fewer restrictions and more exquisite engraving patterns and designs.

In addition, its engraving speed has reached an incredible 25,000 millimeters per minute, which is twice the speed of earlier models. This speed unlocks much more time for creating without sacrificing quality. Users can also leverage this speed for batch engraving works and cutting production.

The CR-Laser Falcon 2 22W is also equipped with a triple monitoring system that keeps the machine safe and sound during operation. Airflow monitoring keeps track of the current airflow volume, lens monitoring ensures that the lens doesn’t break and require frequent replacement, while flame monitoring prevents fires and other safety hazards from taking place.

②Upgrade Pick: Creality Falcon2 40W

Creality Falcon2 40W is the most powerful laser engraver in Creality’s lineup so far. Based on the latest FAC spot compression technology, 8 powerful 5.5W laser diodes are compressed to increase the laser power to 40W. Cutting 20mm basswood boards and 0.15mm stainless steel in one pass at speeds up to 25000mm/min. If you are a laser engraving technology user who pursues performance, it will be your best choice.

Equipped with breakthrough features such as dynamic spot adjustment. Creality Falcon2 40W can adjust the spot size according to engraving and cutting requirements, making it suitable for cutting thicker objects with a full-power large spot and thinner objects with a small spot for engraving and cutting, resulting in higher work efficiency and finer work results.

It also supports color engraving and air assist with a smart monitoring system and upgraded safeguards.

③Budget Pick: CR-Laser Faclon(10W/5W)

(Link:https://store.creality.com/products/10w-cr-laser-falcon-engraver?aid=ZBBlog)

Creality believes that the ease of use and performance of CR-Laser Faclon 10W will meet the needs of both beginners and DIY enthusiasts. Priced at just $349 for 5W and $419 for 10W, makers of all experience levels can integrate laser engraving into their creative process without breaking the bank.

By using Creality’s poly-lens spot compression laser technology, the spot size of the laser engraver is compressed from 0.32 x 0.14 mm to 0.12 x 0.06 mm, increasing speed by six times, while still ensuring that both the engraving and cutting accuracy can reach 0.1 mm. Enough to meet the daily usage needs of most users.

You can utilize a wide array of materials with the CR-Laser Falcon, including flexible materials like paper and leather, and wood. Even materials with high hardness, such as PVC, or anodized surfaces.

To reduce the risk of engraving failures or critical miscues, CR-Laser Falcon has made it easy for users to preview the engraving area before starting the process. For small batch engraving, the preview function is a significant help as it indicates the same dimensions as the actual working area, largely improving the overall success rate.

④Small Size Pick:CV-01 Pro

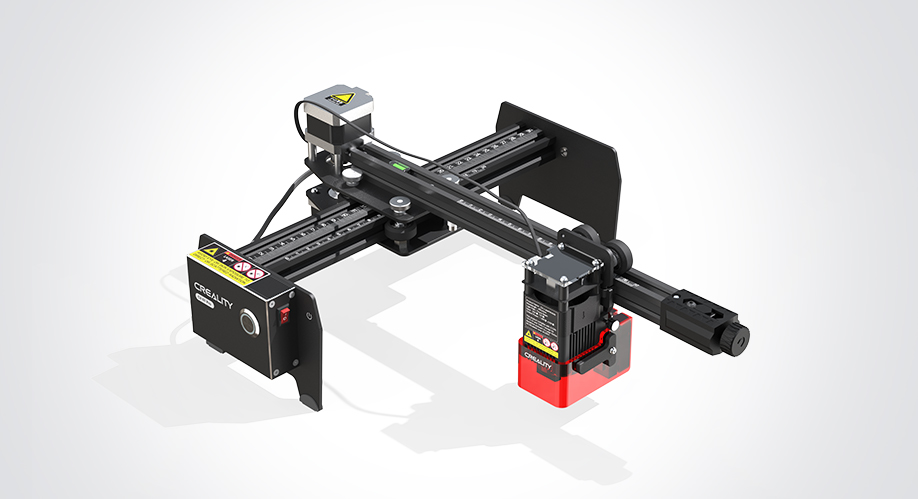

The Creality CV-01 is a laser engraving machine with a decent 1.6-watt laser module.

A thoroughly economical and affordable laser engraver with laser power that meets your needs and a simple and compact frame design that lets you easily start your engraving journey.

The Creality CV-01 is powerful enough to perform engravings on materials like plastics, leather, rubber, wood board, bamboo board, cardboard, and more. As long as your intention isn’t cutting through materials or making engravings in metals, it should be strong enough for your needs.

It’s worth mentioning that because the laser beam from laser engravers can cause eye damage if you look at its mid-engraving, the Creality CV-01 provided a pair of UV-resistant glasses that will protect your eyes during the engraving process. There’s also a semi-transparent orange circular part that attaches to the bottom of the laser engraver to further protect you from being exposed to the UV rays produced by the laser module.

When introducing the Creality laser engravers, it’s also worth mentioning its 3D printer laser module. If you already have a 3D printer or want to have one, the laser module could be a potential choice for you.

⑤Best Choice For 3D Printer Modder:Creality Laser Module Series



The power performance of all the laser modules is similar to that of the engravers, but it offers tremendous compatibility with Creality 3D printers, opening the door for meaningful and useful creations of all types. Users can install the laser module within two minutes time and can enjoy starting their engraving journey without having to change or update firmware.

Creality Laser Module Series

Power

1.6W

5W

10W

22W

40W

Laser Spot

0.05mm

0.06mm

0.06mm

0.1mm

Adjustable0.1mm/0.15mm

Mode

Engrave

Cut

Engrave

Cut

Engrave

Cut

Engrave

Cut

Engrave

Cut

2mm Basswood

Very delicate,

but slower

X

Delicate,faster than 1.6W

1 Pass

Delicate,faster than 5W

1 Pass

Delicate,faster than 10W

1 Pass

Can be as delicate as 22W,faster than 22W

1 Pass

5mm Basswood

X

X

1 Pass

1 Pass

1 Pass

8mm Basswood

X

X

X

1 Pass

1 Pass

10mm Basswood

X

X

X

1 Pass

1 Pass

15mm Basswood

X

X

X

X

1 Pass

20mm Basswood

X

X

X

X

1 Pass

3mm Black Acrylic

X

X

X

1 Pass

1 Pass

1 Pass

5mm Black Acrylic

X

X

X

X

1 Pass

1 Pass

8mm Black Acrylic

X

X

X

X

1 Pass

1 Pass

Dark Anodized Aluminum

X

X

X

X

X

X

Brushed stainless steel

X

X

X

X

General Engraving

X

Colorful Engraving

X

Colorful Engraving

X

Supported Materials

Cardpaper, Felt, Cardboard, Wood, Bamboo,Leather, Fabric, etc.

Cardboard, Felt, Cardboard,Wood, Bamboo, Leather,

Fabric, Acrylic, Brushed Stainless Steel, Dark Anodized Aluminum, Painted Metal, etc.

Cardboard, Felt, Cardboard,Wood, Bamboo, Leather,

Fabric, Acrylic, Brushed Stainless Steel, Dark Anodized Aluminum, Painted Metal, etc.

Cardboard, Felt, Cardboard,Wood, Bamboo, Leather,

Fabric, Acrylic, Brushed Stainless Steel, Dark Anodized Aluminum, Painted Metal, etc.

Cardboard, Felt, Cardboard,Wood, Bamboo, Leather,

Fabric, Acrylic, Brushed Stainless Steel, Dark Anodized Aluminum, Painted Metal, etc.

In addition, Creality has a series of accessories for their products, and some good accessories are crucial to the success of works.

①Rotary Roller for Laser Engraver

Suitable for engraving cylindrical and conical works, it can manipulate rotating works to achieve perfect designs through LightBurn. Equipped with a lifting bracket, it can fix the slender parts of conical works and is suitable for cans, wine bottles, cups, curved crafts, high-foot cups, etc.

It has seven different width modes that are suitable for cylindrical objects with diameters ranging from 5mm to 120mm.

②Honeycomb Workbench+ Steel Plate+ Extra Risers

(Link:https://store.creality.com/products/10w-falcon-engraver-accessory-kit?aid=ZBBlog)

The combination of honeycomb Workbench and steel plate can protect the desktop from damage, and the maximum working area supported is 456*456mm. The large aperture 8mm honeycomb design dissipates heat and smoke faster, avoiding fire and yellowing of works.

Extra riser is equivalent to two risers attached to Falcon 2, which can increase the height of the engraving machine. When worked with rotary roller, it can support a maximum working height of 160mm and a working diameter of 165mm.

③Protective Cover for Laser Engraver

The enclosed structure of the protective cover is an excellent partner to improve the experience of using a laser engraver. It can isolate smoke and odor generated during work, bringing a more comfortable engraving experience.

Creality’s laser engraver protective cover also has a built-in smoke exhaust system, which can exhaust smoke and dust in the cavity and keep the internal air clean. Installation is also very simple, and it can be folded for storage.

The transparent window design filters blue light while protecting the eyes, eliminating the need for additional eye protection glasses.

Above is the product guide of the Creality Laser Engraver Series. If you are interested in laser engraving technology or want to pursue more extreme works in laser engraving technology, you can select and combine the laser engraving components you need according to this article to create the most suitable laser engraving experience for yourself.
