Double pull rod + dual Z-axis

CR-6 MAX 3D Printer

€869.00 €869.00
Save €0.00
VAT included.

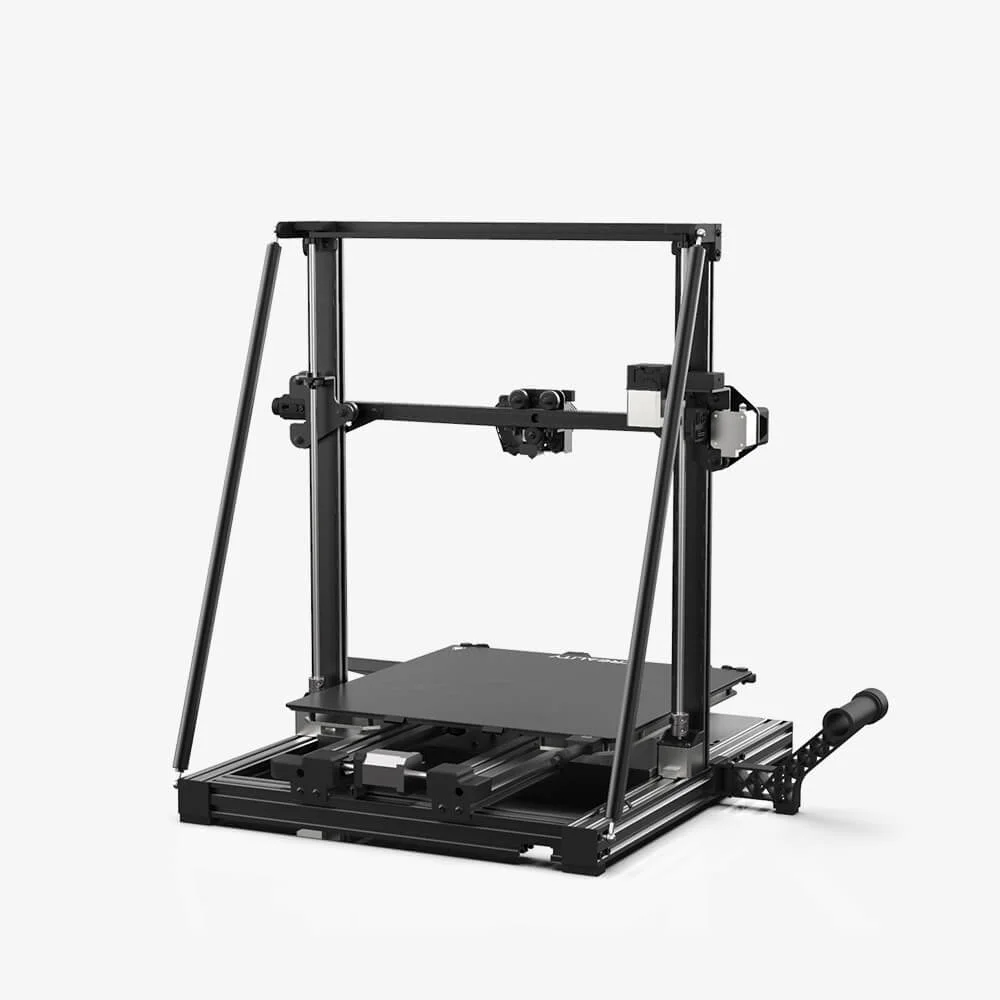

Creality CR-6 Max FDM 3d printer, large print size 400x400x400mm,makes you enjoy the DIY fun, realizes your unlimited creativity, and satisfies you with more choices.
Large print size
Double pull rod + dual Z-axis
Intelligent auto-leveling
Dual Y-axis design
Excellent silent motherboard
Precise nozzle kit

Quantity

American Express Mastercard PayPal Visa JCB Discover Diners Club
14-Day Return & Refund Service
100% Secure Checkout
12-Month Hassle-Free Warranty
Lifetime Customer Support

Take a Closer Look

Take a Closer Look

Large Print Size

With the print size 400*400*400mm,CR-6 Max realizes your endless creativity and satisfies you with more choices.

Ultra 32-bit Silent Motherboard

CR-6 Max was equipped with a self-developed 32-bit silent motherboard and the latest TMC2209 driver.They feature stronger anti-interference,more precise voltage control and more silent printing motion,making the entire printing smoothly, quietly and precisely.

High Precision Nozzle Kit

Fast to heat, easy to remove the model without warping. Brand new design and module nozzle kit is featureof the great flow-path and even heat dissipation,which makes the printing more precise

Intelligent auto-leveling

Brand new and self-developed leveling has the precise sense, more convenient and efficient.

Double Pull Rod, Dual Z Axis

Equipped with a double-pull rod, dual Z-axis and timig belt, the triangular structrure greatly promots the printing quality.

CR-6 Max 3D Printer
Modeling Technology: FDM(Fused Deposition Modeling)
Machine size : 725x640x691mm
Motherboard: Silent motherboard
Nominal Voltage: 100v-240v
Rated Power: 500W
Output Voltage: 24V
Layer Thickness: 0.1-0.4mm
Print Resolution: ±0.1mm
Nozzle Temperature: ≤260℃
Nozzle Diameter: 0.4mm as standard
Hotbed Temperature: ≤90℃
Creality Care+
Manual
Download
Open Source Plugins
Explore Now
CR Care+
Contact Us

FAQ

1. Heat the spray head to 230 degrees Celsius and keep the same temperature to remove the spray head kit; and then remove the heating block and throat separately. After removing, the spray head can heat to the lower temperature.

2. Prepare a bottle of red glue (available from Taobao), apply the red glue to the thread of the throat, let it rest for 1 minute, then reinstall the throat and heating block, and then install the nozzle kit back to the original Bit;

3. If there is still the same issue, please contact the after-sales customer service.

1. Please check whether the temperature display on the display is normal room temperature without giving the heating command. If it is not, it is likely to be a thermal problem, just replace with a new one;

2. Measure whether the output voltage of the hot bed port of the main board is 24V under heating. If there is no voltage, it is a main board problem and need to be replaced with a new main board. Otherwise, it is likely to be a problem with the hot bed board itself and need to be replaced.

Generally, it can be assembled in 5-10 minutes.

Please heat the nozzle to 200 degrees Celsius at first; then use cutting pliers to cut and straighten the front end of the filament at a 45-degree angle; and then open the extrusion clamp,  pass the filament into the extruder kit along the cut-off detection aperture;until the filaments flow out from the machine nozzle.

The machine has the function of continuous power off,  it can continue printing when the power is restored normally.

But the connection effect may not be very good, there is a certain chance that it will fail.
