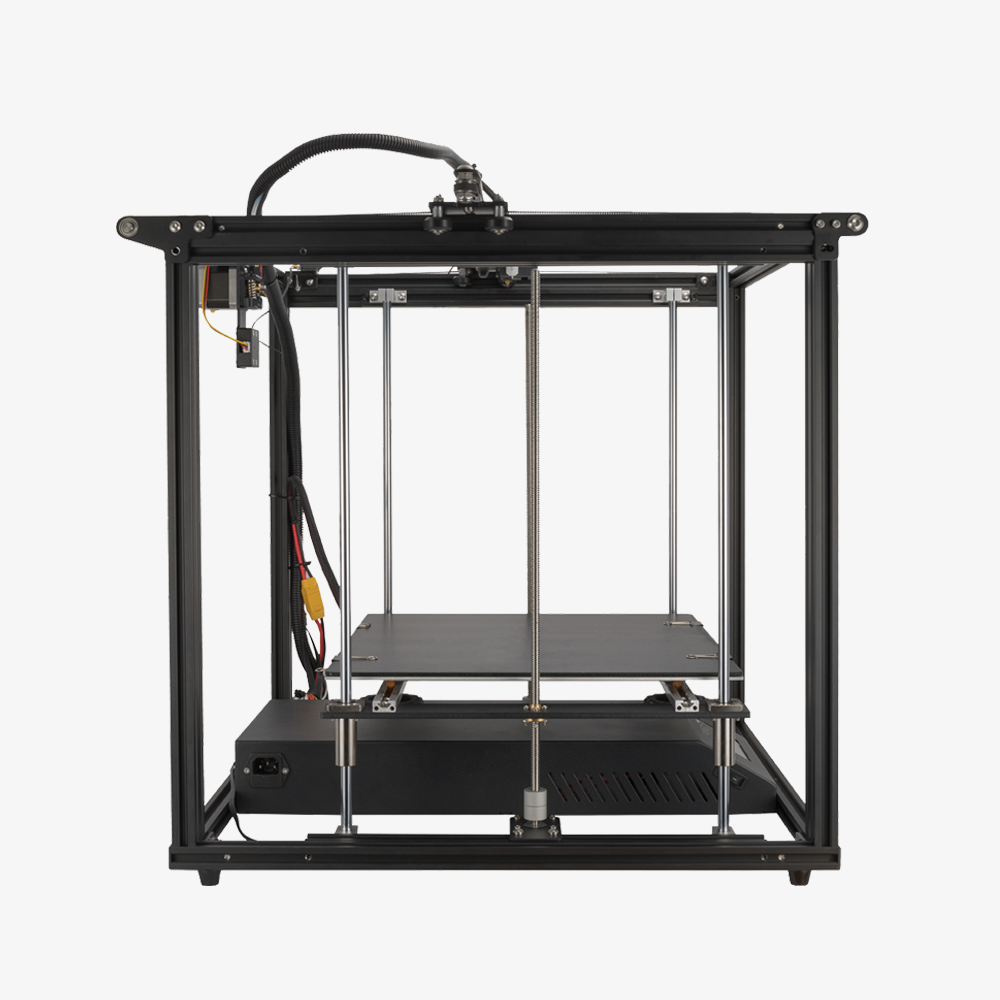

Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer
Ender-5 Plus 3D Printer

Ender-5 Plus 3D Printer

$492.00 $579.00
Save $87.00
Ultra Large scale 3d printer redesigned, bl touch pre-installed for easier auto-leveling, filament sensor equipped to avoid occasional printing errors, and dual Y-axis are also added for helping stable printing and smoother transmission
Spacious Printing Size
Accurate Leveling
Powerful Motor
Humanized Design
Well-Functioning Mainboard
BL-Touch Equipped For Automatic Leveling

Quantity

14-Day Return & Refund Service
100% Secure Checkout
American Express Apple Pay Mastercard PayPal Visa Diners Club JCB
Take a Closer Look

Filament Detection

Better lets you know whenever your filament breaks, runs out, or gets tangled on the spool.

High Power Supply Unit

Brand power supply unit, safe and secure. Brand power support to heat the hotbed up to 100℃ within 10 minutes.

CR Touch Auto Leveling Sensor

Pre-installed CR Touch, precisely measure the tilt of the bed surface, offers the automatic compensation for Z-axis for unevenness of the platform plate, and provid reliable operation with all build surfaces.

Y Axis Dual Shaft Motor

Meet more of your printing requirements, achieve better print results and a laarger print model at a time.Y Axis Dual Shaft Motor.

Spacious Printing Size

With 350x350x400mm print space, large models can be printed in one step. No extra assembly work with separated printed modules any more.

Take a Closer Look

Ender-5 Plus 3D Printer
Modeling Technology: FDM(Fused Deposition Modeling)
Printing Size: 350x350x400mm
Machine size : 632x666x619mm
Package size: 730*740*310mm
G.W.: 23.8kg
N.W. : 18.2KG
Power parameters: DC 24V 21A,Max 25A,Max 550W
Nozzle qty.: 1
Nozzle diameter:0.4mm
Print Accuracy: ±0.1mm
Maximum Hotend Temperature: ≤260°C
Hot bed temp.: ≤100℃
Layer thickness: 0.1mm-0.4mm
Nozzle temp.: ≤260℃
Printing materials: PLA/ABS/TPU/Wood/Gradient/Copper material
Filament diameter: 1.75mm
Files transfer: USB or TF card
Slicing software: Creality Cura,Slicer,Simplify3D
File format: STL,OBJ,AMF
Creality Care+
Manual
Download
Open Source Plugins
Explore Now
CR Care+
Contact Us

FAQ

After connecting the power supply, press the ship type switch to start the machine

Please turn off the machine when you do not want to continous to print the models.

The temperature displayed is the current actual temperature (room temperature), and the one displayed as 0 is the preset temperature. When we set the temperature manually, the temperature we set will be displayed here

Manual temperature setting requires us to set the appropriate printing temperature. Automatic temperature setting mainly includes PLA and ABS options. If you select one of them, the machine will automatically start heating according to the temperature set by the program

1. Heat the spray head to 230 degrees Celsius and keep the same temperature to remove the spray head kit; and then remove the heating block and throat separately. After removing, the spray head can heat to the lower temperature.

2. Prepare a bottle of red glue (available from Taobao), apply the red glue to the thread of the throat, let it rest for 1 minute, then reinstall the throat and heating block, and then install the nozzle kit back to the original Bit;

3. If there is still the same issue, please contact the after-sales customer service.

1. Check whether the temperature on the display screen is normal room temperature without giving heating order. If not, it is likely to be a thermal problem. Replace it with a new one;

2. Under the condition of heating, measure whether the output voltage of the hot bed port of the main board is 24V. If there is no voltage, it is the problem of the main board and a new motherboard is needed. Otherwise, it is likely that the hot bed board itself has a problem, so the hot bed board needs to be replaced;

1. Check whether it is plugged into the EXP3 port and plug in and out the screen cable again.
2. Check whether the screen is obviously damaged and replace it with a new one.
3. Whether there is a "drip" beep when pressing the knob. If it is silent, it is likely that there is a problem with the motherboard and a new motherboard needs to be replaced; otherwise, it is likely that there is a problem with the display screen and a new display screen needs to be replaced.
4. Contact the after-sales department for assistance in handling the problem .

1. Slicing problem. If the slice is not successful or not exported completely, reslice or wait for the export progress buffer to complete.

2. If the transmission file is interrupted during SD card printing, replace the card or format the card .

3. If it still can't be solved, please contact the after-sales department for assistance

Adjust the hot bed to the best state according to the leveling tutorial. Try to pass through the middle part of the hot bed with three pieces of A4 paper. If it can pass through, it means that the error of the hot bed is large, and a new hot bed plate needs to be replaced

Take off the hot bed plate separately, put it on the table, take a ruler to make it perpendicular to the hot bed plate, and then try to pass through the middle part of the hot bed with three pieces of A4 paper. If it can pass through, it means that the error of the hot bed is large, and a new hot bed plate needs to be replaced. Otherwise, the leveling problem is still leveling. You can contact the after-sales personnel for assistance

The prompt is that the machine reads the temperature error. It is likely that the print head/hot bed thermal line is defective or loose. You can re-plug and unplug the thermal line on the motherboard, or you can directly contact the after-sales for assistance.
